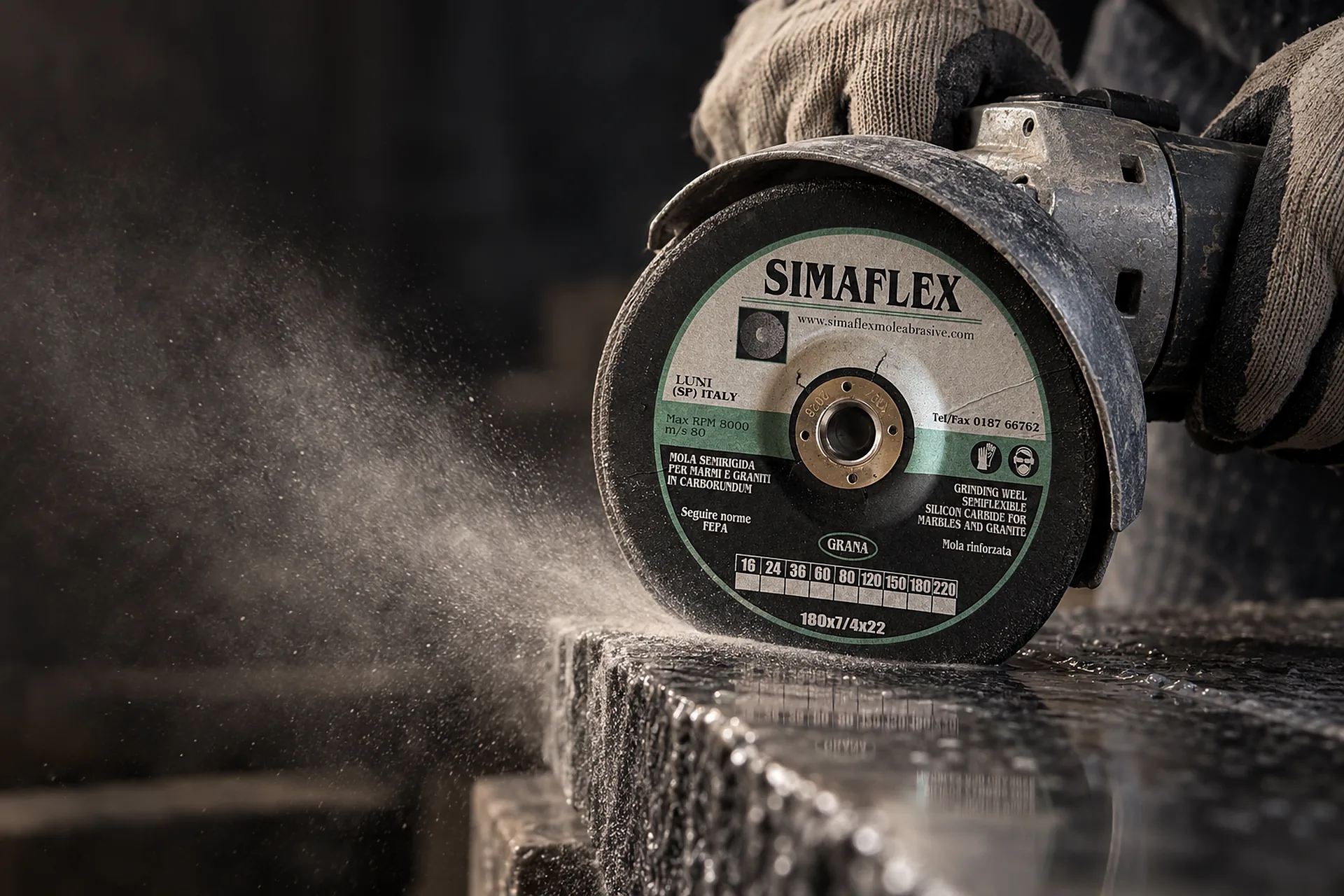

Simaflex 180 mm carborundum semi-flexible disc on an angle grinder, roughing the edge of a granite slab
Semi-flexible discs · depressed centre · Ø 180

Semi-flexible discs for grinding marble and granite with an angle grinder

The carborundum disc that mounts on a portable angle grinder and works the stone where the machine cannot reach: two thicknesses, 4 and 7 mm, grit sizes C16 to C400. Made in Luni, Italy.

what it does

The angle-grinder consumable for stone.

The semi-flexible disc is the wheel for hand work: roughing an edge, levelling a joint, taking down the excess on a piece already installed, going over a corner where the edge polisher cannot get in. It mounts on the angle grinder without a backing pad and works marble, stone and granite, wet and dry.

It is semi-flexible because the backing flexes slightly under pressure: it follows the piece instead of digging into it, and on surfaces that are not perfectly flat it leaves an even pass. The grain is silicon carbide, carborundum, held by a resinoid bond: it cuts stone without loading.

Simaflex 180x22 carborundum semi-flexible disc for marble and granite, catalogue photo
semi-flexible disc 180 · Simaflex catalogue
the sizes

Two thicknesses: 180x4x22 and 180x7x22

Same diameter, same bore, two thicknesses. The job makes the difference.

SizeThicknessWhen to use it
180x4x224 mmcarborundum semi-flexible disc for portable angle grinders, for coarse grinding and honing of marble, stone and granite; the thinner disc, which flexes more and follows uneven surfaces better
180x7x227 mmsame use, with more body: it holds up better under pressure, for roughing where a lot of stock is removed

How to read it: 180 is the diameter in millimetres, 4 or 7 the thickness, 22 the bore.

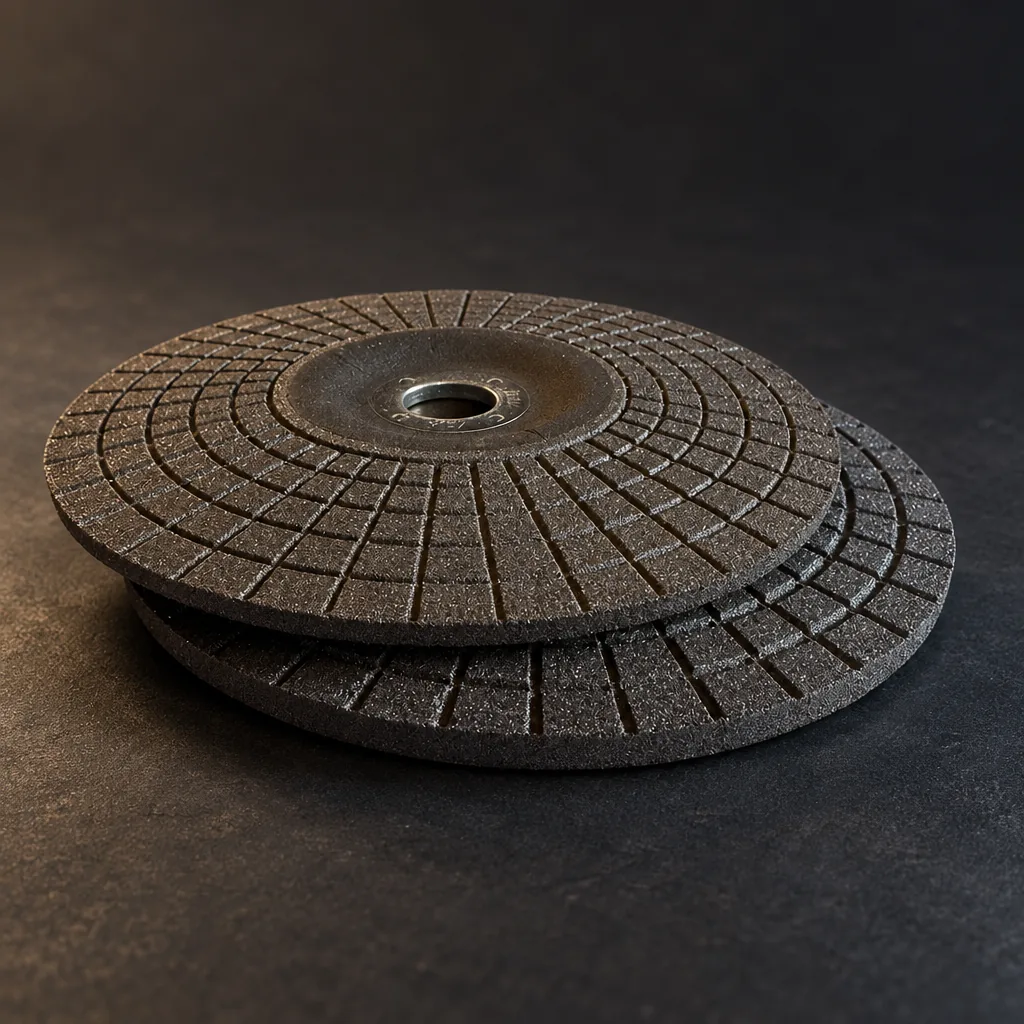

Two Simaflex semi-flexible discs, 180x4x22 and 180x7x22, stacked edge-on, thicknesses compared
4 and 7 mm, edge-on

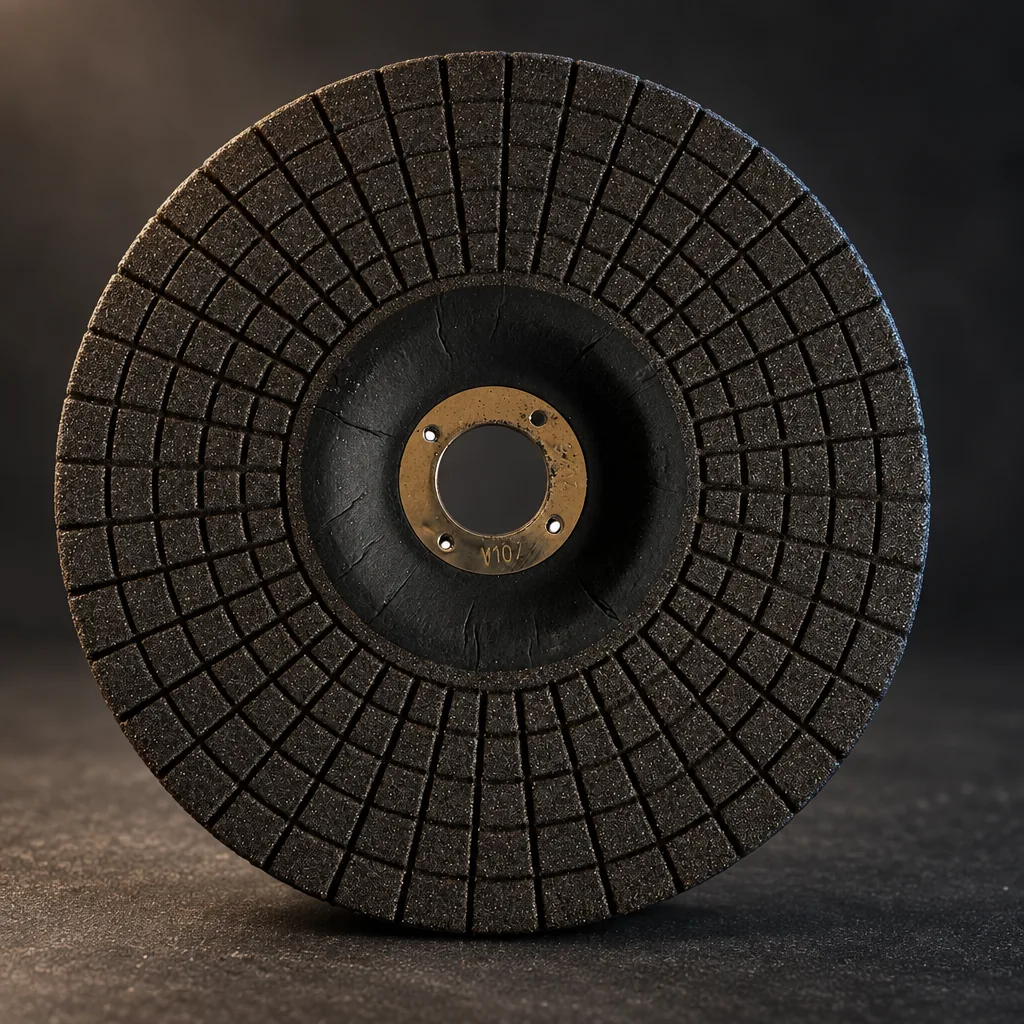

Simaflex semi-flexible disc seen from the back: depressed centre and reinforcement
the depressed centre, from the back
applications

Coarse grinding and honing wet and dry

Marble, stone, granite, porcelain stoneware: the semi-flexible disc works all four. Dry, it is convenient on site and on the installed piece; wet, the water cools the disc, keeps the dust down and extends the life of the grain. Either way the pressure comes from the hand: the disc flexes and spreads the contact, so there is no need to push.

  • Coarse grinding of the edge after cutting, with the coarse grit.
  • Honing of surfaces and arrises, with the fine grit, before polishing.
  • Touching up joints, corners and pieces already fitted, where bench machines cannot reach.
in short
Semi-flexible or rigid: what difference does it make on the piece?

A rigid disc keeps its shape and works flat: fine on surfaces that are already flat, but in hollows it digs in. The semi-flexible disc flexes under pressure and follows the piece: the pass stays even on an uneven edge or on an installed piece, and the risk of leaving disc marks drops.

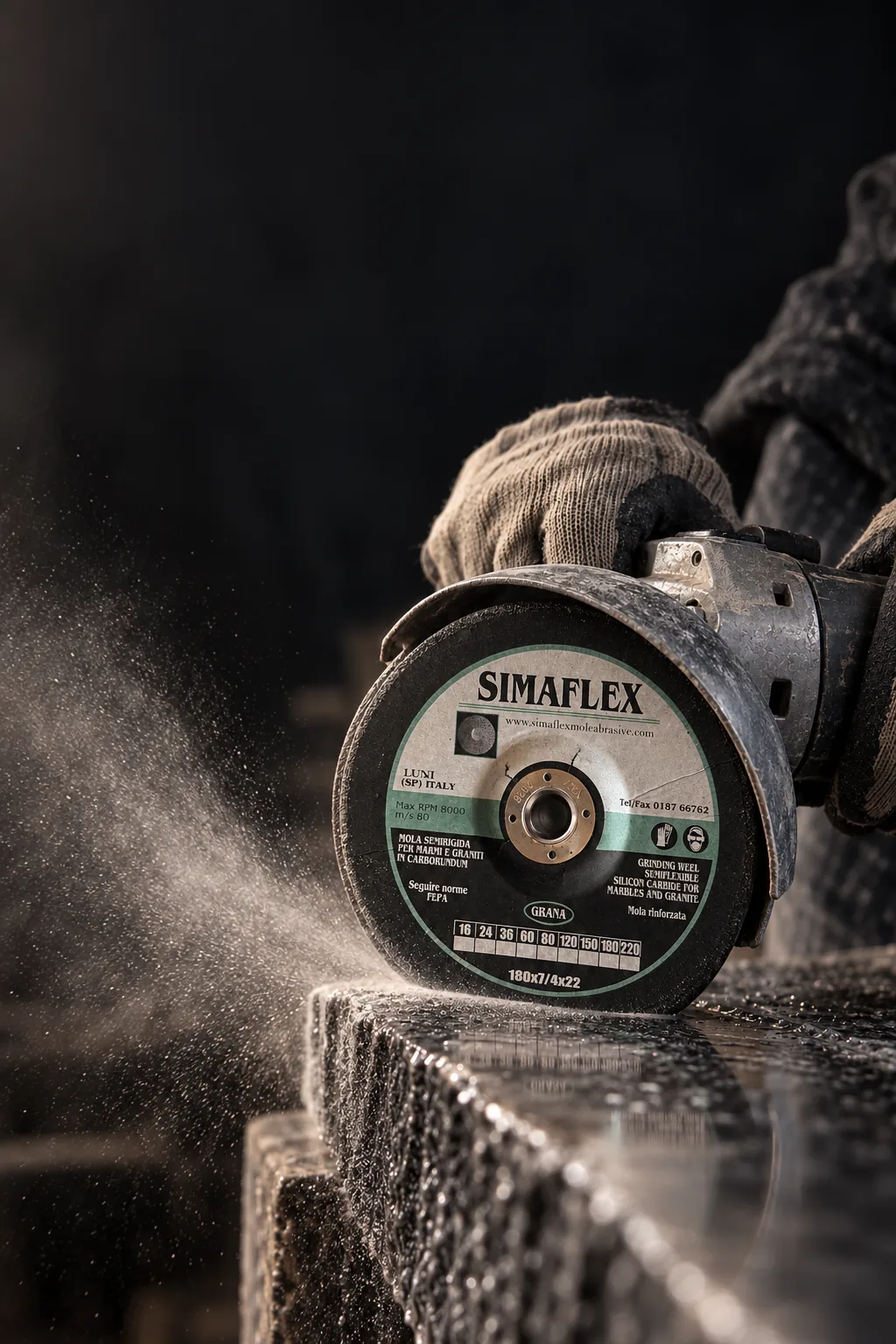

Simaflex semi-flexible disc on an angle grinder working granite, portrait framing, with the dust backlit
dry, on granite: dust, not sparks
Macro of the silicon carbide grit of a Simaflex abrasive disc
grit and hardness

Grit C16-C400 and hardness grades.

The letter C stands for silicon carbide, the number is the grit size: the lower, the coarser the grain, the more stock removed per pass. We make semi-flexible discs in grit sizes from C16 to C400: coarse for roughing, fine for honing and leaving the surface ready for polishing. The hardness we set on the material: if you always work the same granite, tell us, and we give you the disc that lasts longest on it.

C16C400
compatibility

Which angle grinders it fits

  • 180 mm diameter: for 7" (180 mm) angle grinders, the most common in the workshop and on site for stone.
  • 22 mm bore: the standard bore of 180 and 230 mm angle grinders (22.23 mm / 7/8").
  • Depressed centre: the disc mounts without a backing pad, directly with the flange of the machine, and the recessed centre keeps the nut below the working face.

If your machine has a different diameter or bore, we make the disc to size: see custom wheels made to drawing.

compatibility sheet
Diameter
Ø 180 mm
Bore
22 mm
Thicknesses
4 · 7 mm
Shape
depressed centre
Mounting
semi-flexible disc + flange
Grit
C16-C400
outside the catalogue

Need a different diameter, or a grit that is not listed?

The two thicknesses in the catalogue cover most angle-grinder work. For everything else, diameter, bore, thickness or an intermediate grit, send us the size or a sample of the disc you use today.
